CWDM MUX 8CH 16 Wavlengths (TX: 1310/1330/1390/1410/1470/1490/1550/1570nm RX: 1350/1370/1430/1450/1510/1530/1590/1610nm)

MOQ : 1

Contact Now

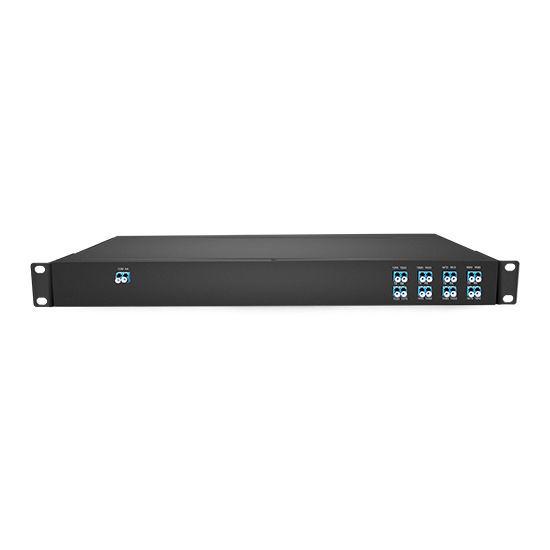

8 Channels 1310 to 1610nm LC/UPC Singlel Fiber CWDM MUX DEMUX Side-A 1U Rack

Product Details

Operating Wavelength	8 Channels 1310-1610nm	Channel Space	20nm
Passband	ITU±6.5nm	Insertion Loss	≤4.8dB
Insertion Loss @ Exp	≤ 2.4dB	Return Loss	≥45dB
Directivity	≥ 50dB	Fiber Type	SMF-28e or Customer Specified
Adjacent Channel Isolation	≥30dB	Non-adjacent Channel Isolation	≥40dB
Polarization Dependent Loss	≤0.2dB	Polarization Mode Dispersion	≤0.1ps
Maximum Optical Power	500mW	Dimensions (HxWxD)	44x482x230mm
Operating Temperature	-20°C～+70°C	Storage Temperature	-40～+85°C

Quality Assurance

Excellent quality is the foundation of FIBER MALL' s survival and development. Our operation team are experts with many years' experience in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.
